Flanges provide detachable connections between pipes, valves, pumps, pressure vessels and other process equipment. Their design allows piping sections to be inspected, maintained or replaced without cutting the complete pipeline. Selecting the right flange supplier UAE is therefore essential for obtaining the correct pressure class, facing, dimensions and material grade for the intended service.
Common flange types include weld-neck, slip-on, blind, socket-weld, threaded, lap-joint, reducing and orifice flanges. Each design serves a different operating or installation requirement.

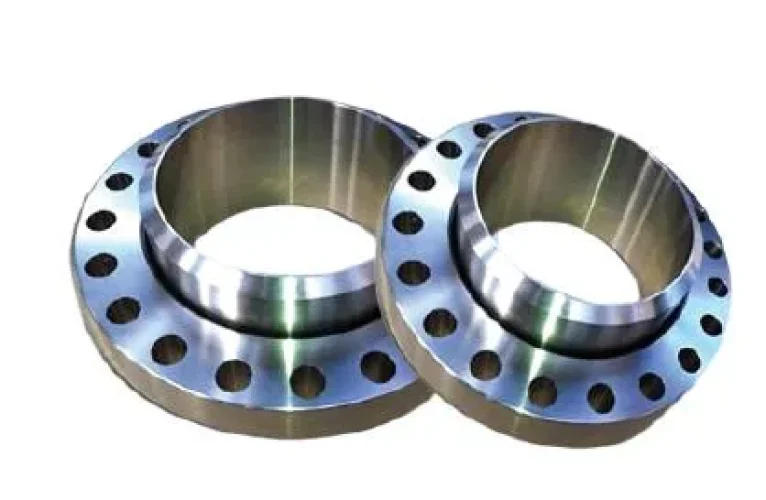

Weld-neck flanges have a tapered hub that transfers stress gradually from the flange to the pipe. They are frequently selected for high-pressure, high-temperature and cyclic services in oil and gas, refinery, petrochemical, offshore and power-generation projects. Slip-on flanges are easier to align and install and are commonly used for lower-pressure utility and water systems.
Blind flanges close pipeline ends, valve nozzles or pressure-vessel openings. Socket-weld flanges are used in small-bore, high-pressure piping, while threaded flanges provide weld-free connections for selected low-pressure or hazardous areas where hot work must be controlled.
Flange dimensions and pressure-temperature ratings are commonly specified according to ASME B16.5 for sizes up to NPS 24 and ASME B16.47 for larger-diameter flanges. Standard pressure classes include Class 150, 300, 600, 900, 1500 and 2500. Buyers should also confirm whether the required sealing face is raised face, flat face or ring-type joint.
Material selection should match the connected pipe and process conditions. ASTM A105 forged carbon steel is widely used for general refinery, oil and gas and utility applications. Low-temperature systems may require ASTM A350 LF2, while high-temperature alloy applications can use ASTM A182 F11, F22 or F91.
Stainless steel grades include ASTM A182 F304, F304L, F316 and F316L. F316L is frequently selected for marine, chemical and desalination environments because of its improved resistance to chloride exposure. Duplex and super duplex flange grades include ASTM A182 F51, F53, F55 and F60. Nickel-alloy options may include Inconel, Hastelloy and Monel for aggressive chemical or seawater services.
A complete flange enquiry should specify size, pressure class, facing, material, bore, schedule, standard, quantity and documentation requirements. Buyers should also verify compatibility with the mating flange, gasket and bolting arrangement.
Krelson supplies flanges for oil and gas pipelines, refineries, petrochemical plants, desalination systems, offshore facilities, power stations and industrial equipment manufacturers. Customers seeking a dependable flange supplier UAE can source standard and project-specific flange types across carbon steel, stainless steel, alloy steel, duplex, super duplex and speciality materials.
Correct flange selection supports leak-tight operation, safe maintenance and reliable performance throughout the piping system’s service life.
